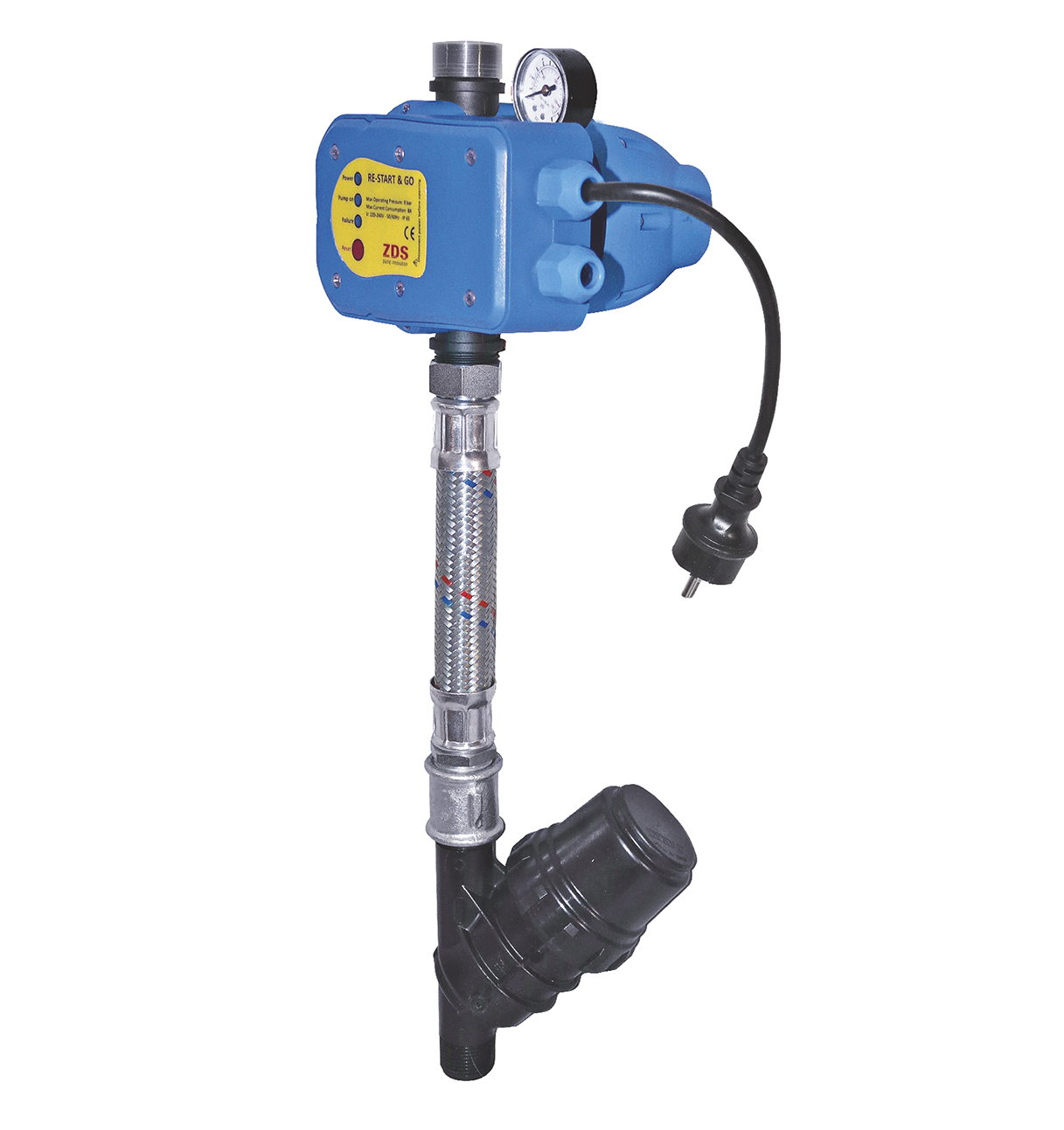

Re-Start&Go

Pressure Control

Electronic device for direct start, stop and protection of the pump against dry running. It keeps a constant working flow, thanks to the inner sensor and start up adjustable pressure switch. The water movement or the pressure decreasing (down the 1,5 bar factory adjustable value) starts the motor.
In case of dry running, the Re-Start&Go tries up to 9th automatic restarts attempts in programmed schedules time. The last attempt is set every two hours without a maximum limit.

Send us a request

  • kW: up to 1,1
  • Voltage range: single-phase 220/240V (50/60Hz)
  • Degree of protection: IP 65
  • Rated ambient temperature: max 60° C
  • Maximum operating pressure: 8 bar
  • Inlet and outlet diameter: 1"
  • Manual start switch: for reset
  • Information led: POWER, ON (running), FAILURE
  • Factory set starting pressure value: 1,5 bar (adjustable 1,5-3 bar)
  • Manometer: included
  • Maximum load: 1,1 kW
Re-Start&Go

Automatic protections

Dry-running protection

Dry-running protection

The Re-Start&Go protects the pump against dry-running. In case of dry running, the pressure control tries up to 9th automatic restart attempts in programmed schedules time. The last attempt is set every two hours without a maximum limit.

Information on a proper installation

Re-Start&Go correct working happens with no sand inside the pumped liquid, for this reason it is recommended to install a sand filter between the submersible pump and the Re-Start&Go device.
It is recommended to install the Re-Start&Go device with plumbing flexible pipes.
