P.OT Three-phase complete pump (3x380-415 V / 50 Hz)

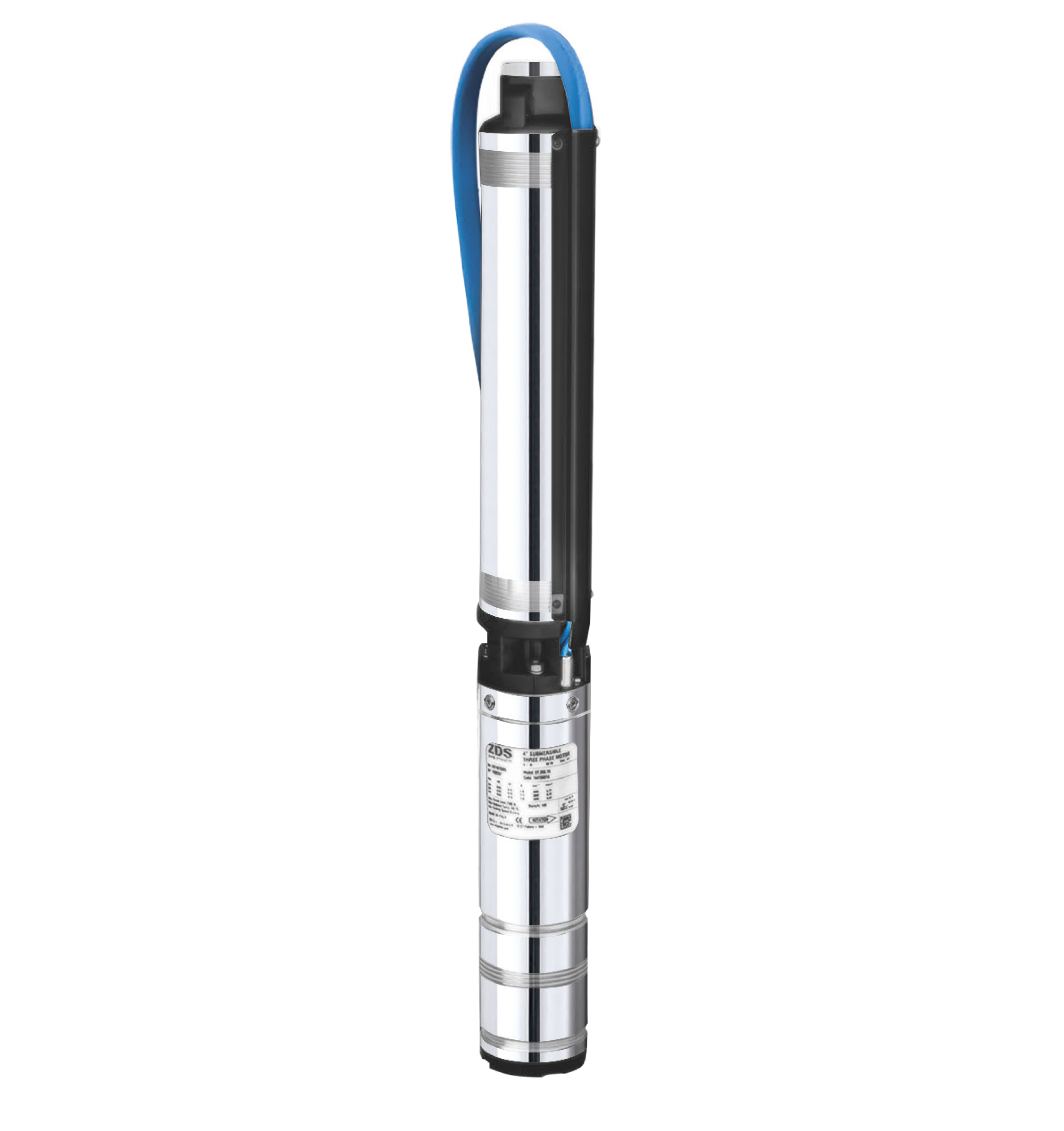

4” complete pump made by technopolimer ZDS hydraulic part, three-phase oil-cooled OT motor and supply cable (different lengths available). These complete pumps, manufactured to ISO 9001 standards, are available up to the maximum delivery of 6.000 l/h and 150 m head. The P.OT complete submersible pumps are designed to be used in applications for lifting, distribution, and pressurisation in civil and industrial water systems, garden irrigation system, filling of pressure vessels and tanks, fire-fighting systems and washing systems, drainage systems, fountains supply.

Send us a request

  • kW: 0,25 - 1,1
  • Voltage range: 3x380-415V / 50Hz
  • Voltage tolerance 50Hz from nominal: 6% / -10% Un
  • Degree of protection: IP 68
  • Maximum quantity of suspended sand: 600 g/m³
  • Insulation: F
  • Rated ambient temperature: max 40° C
  • Cooling flow: min 8 cm/sec
  • Maximum starts/h: 150, equally distributed
  • Mounting: vertical/horizontal
  • Maximum delivery (Q): 6.000 l/h
  • Maximum head (H): 150 m

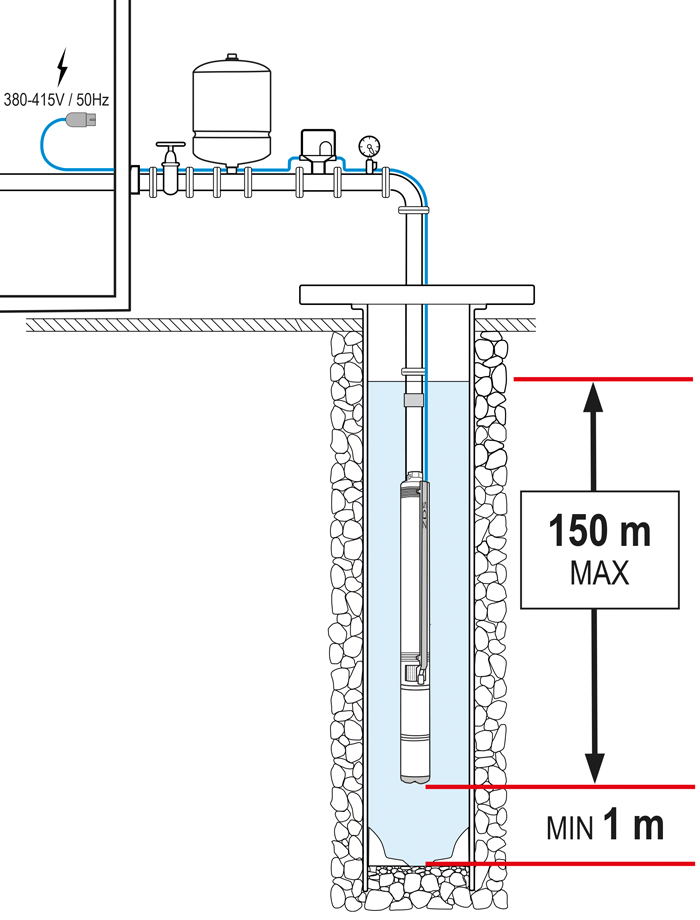

  • Maximum immersion depth: 150 m

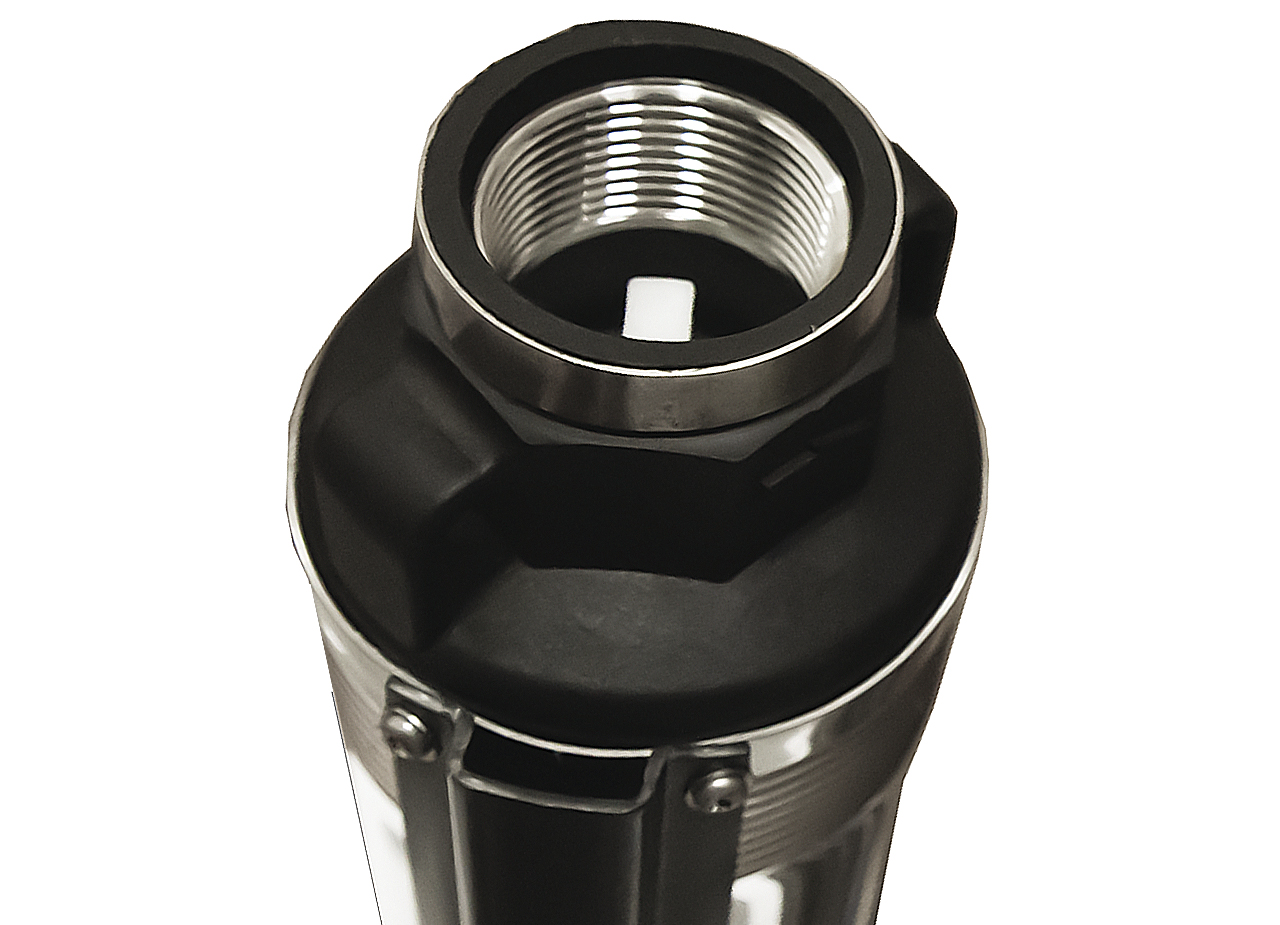

  • Outlet diameter: 1" ¼ G-F
  • Allowed range of water pH: 6,4 - 8,0
  • Protection requirements: for these complete pumps an overload protection and a motor start and run control unit, must be installed according to EN 60947-4-1 trip time < 10 sec. at 5 x IN.
P.OT

Information on a proper installation

  • If you are using a generator with an internal combustion engine, it is necessary that the generator’ s power measured in kW (in continuous delivery) is three times the rated power in kW of the submersible pump.
  • We recommend to install a proper cooling jacket in installations bigger than 10 cm, to guarantee the correct motor cooling flow.
