X.O3 Single-phase Complete Pump (1x220-230V / 50 Hz)

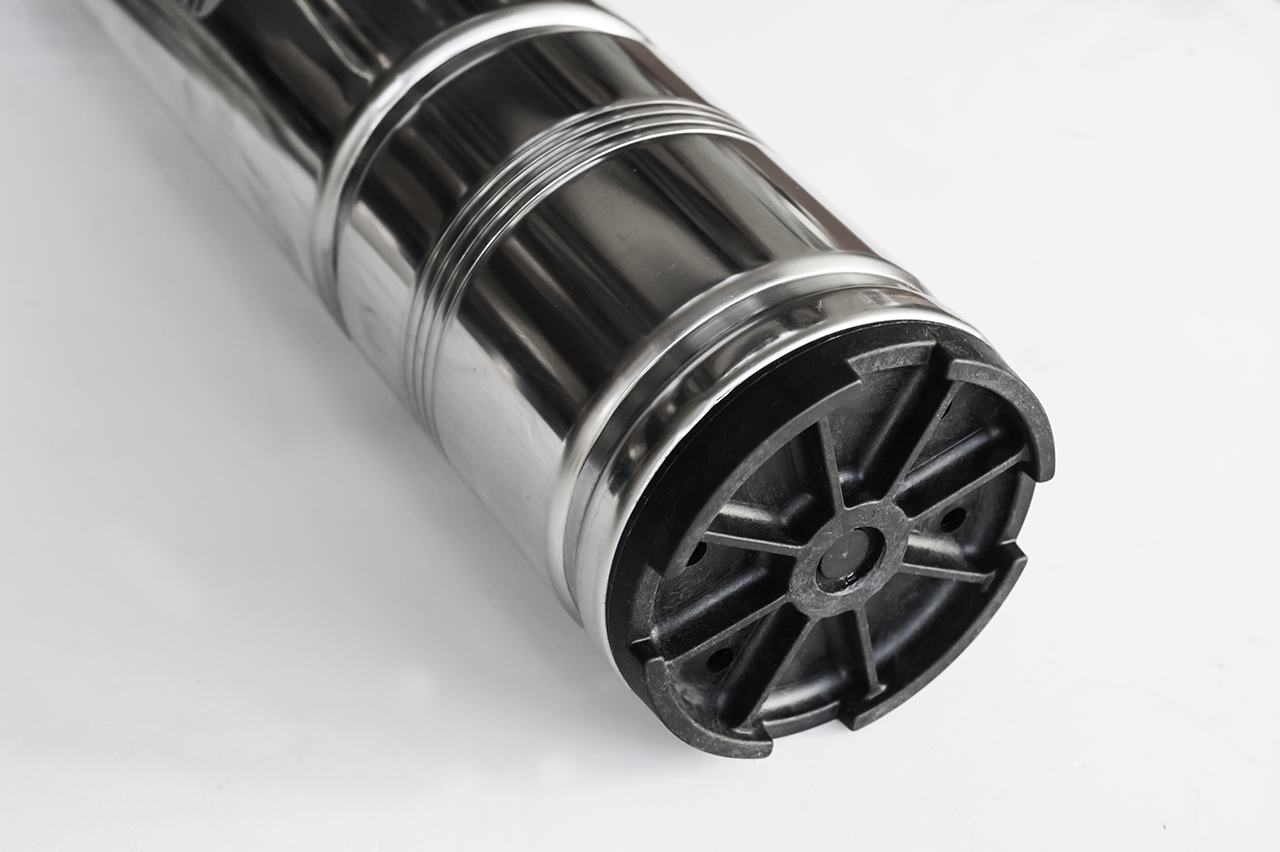

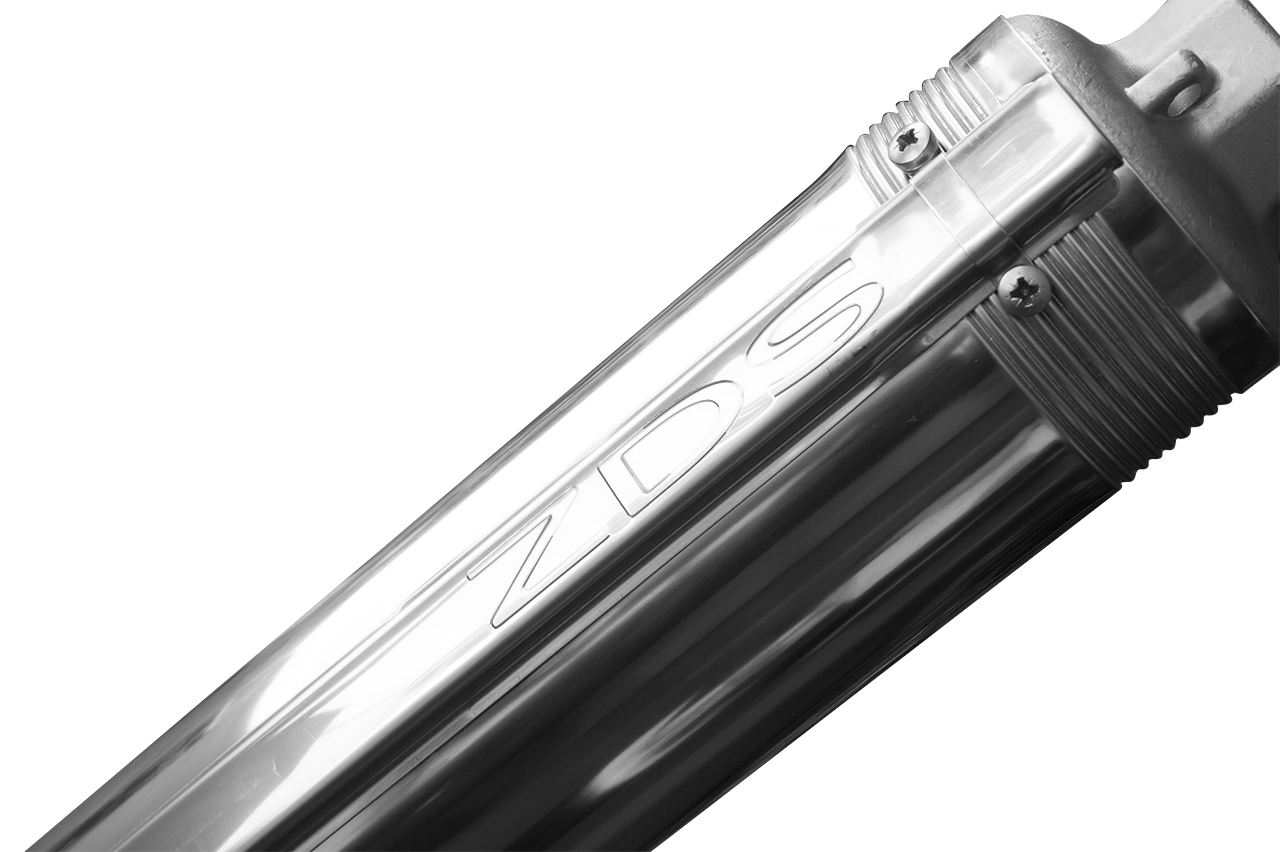

4” complete pump made by stainless steel ZDS hydraulic part, ZDS Control Box (which includes start and run capacitor), single-phase PSC oil-cooled O3 motor and supply cable (different lengths available). These complete pumps, manufactured to ISO 9001 standards, are available up to the maximum delivery of 15.000 l/h and 300 m head. The X.O3 complete submersible pumps are designed to be used in applications for lifting, distribution, and pressurisation in civil and industrial water systems, garden irrigation system, filling of pressure vessels and tanks, fire-fighting systems and washing systems, drainage systems, fountains supply.

Send us a request

  • kW: 0,25 - 2,2
  • Voltage range: 1x220-230V / 50Hz
  • Voltage tolerance 50Hz from nominal: +6% / -10% Un
  • Degree of protection: IP 68
  • Maximum quantity of suspended sand: 600 g/m³
  • Insulation: F
  • Rated ambient temperature: max 40° C
  • Cooling flow: min 8 cm/sec
  • Maximum starts/h: 150, equally distributed
  • Mounting: vertical/horizontal
  • Maximum delivery (Q): 15.000 l/h
  • Maximum head (H): 300 m
  • Maximum immersion depth: 150 m

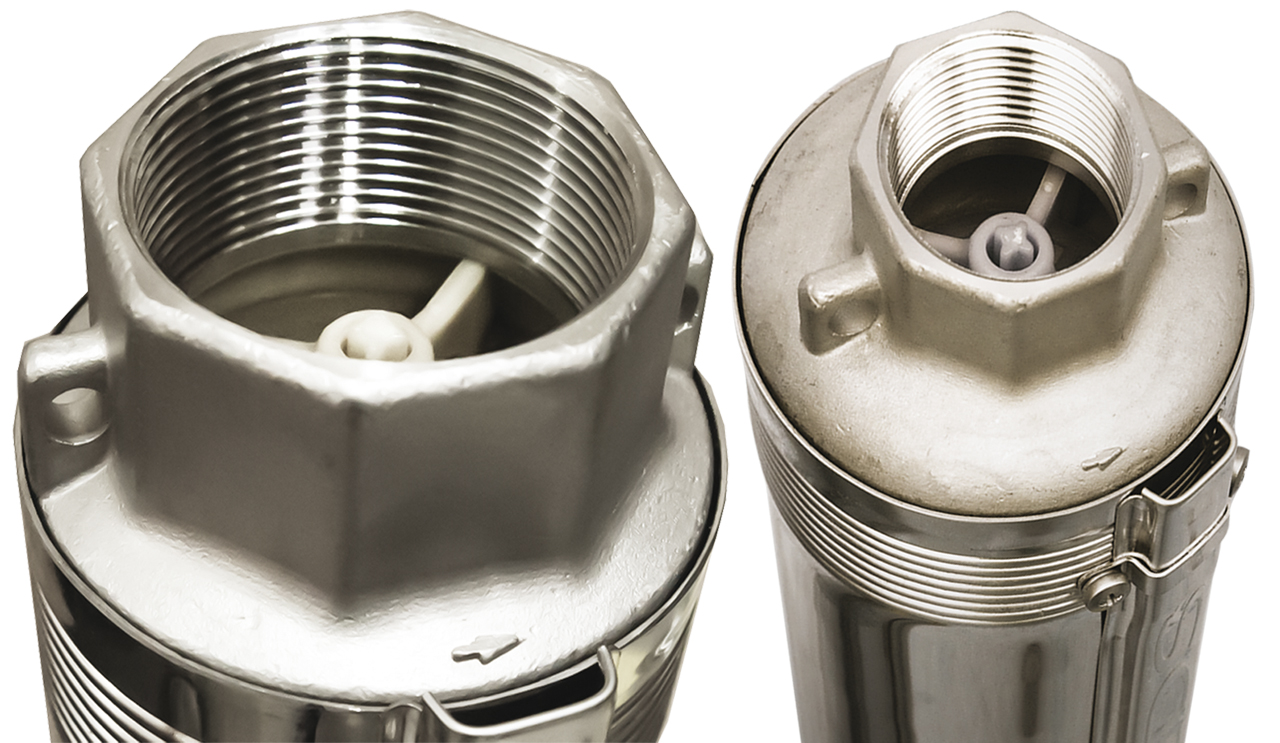

  • Outlet diameter: 1" ¼ G-F, 2" G-F
  • Allowed range of water pH: 6,4 - 8,0
X.O3

Automatic protections

Current overload protection

Current overload protection

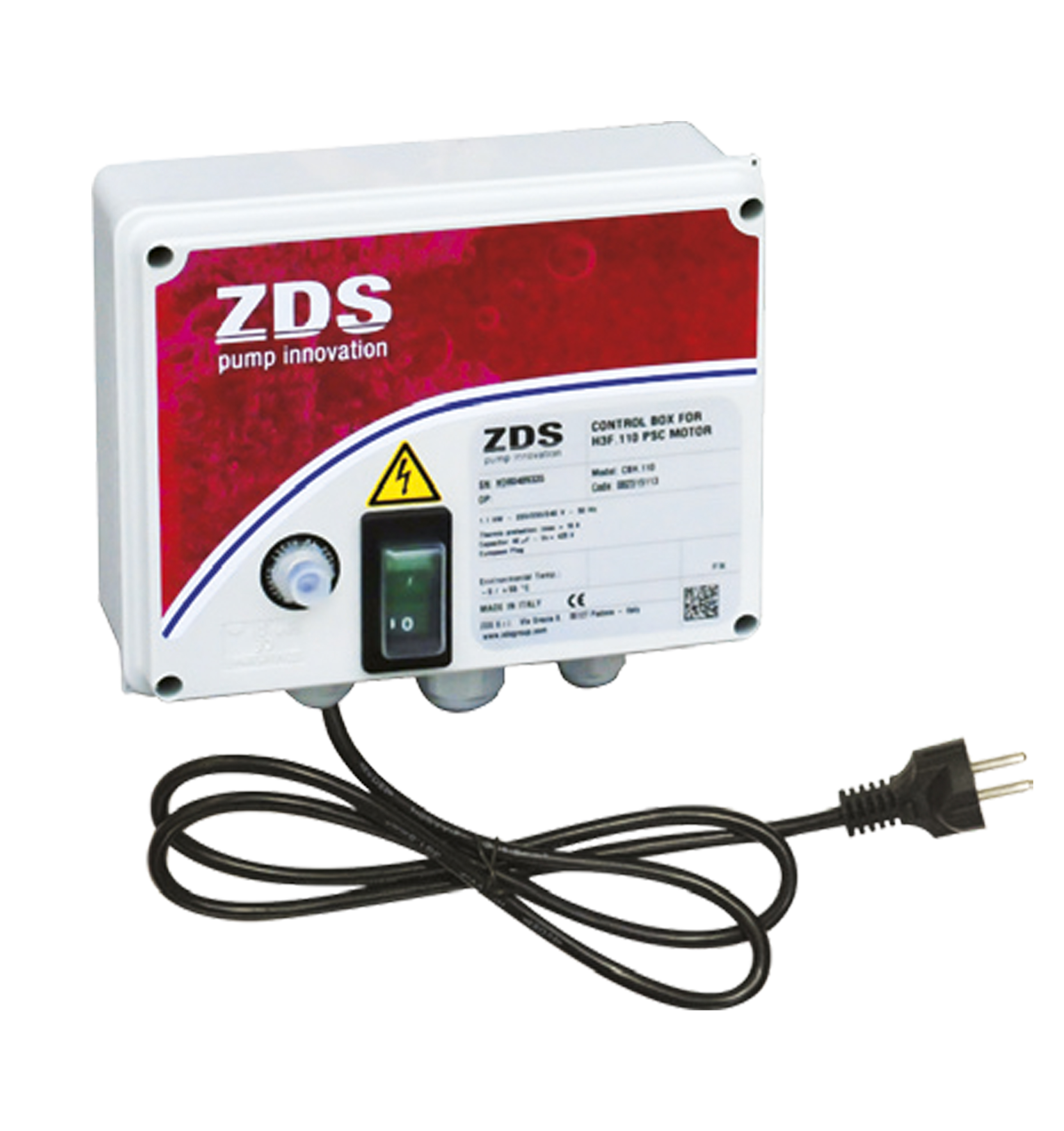

The ZDS Control Box protects the X.O3 complete pump against overload. In case the pump is partially or totally blocked, the overload protection in the ZDS Control Box stops the pump to protect it.

Model performance

Download

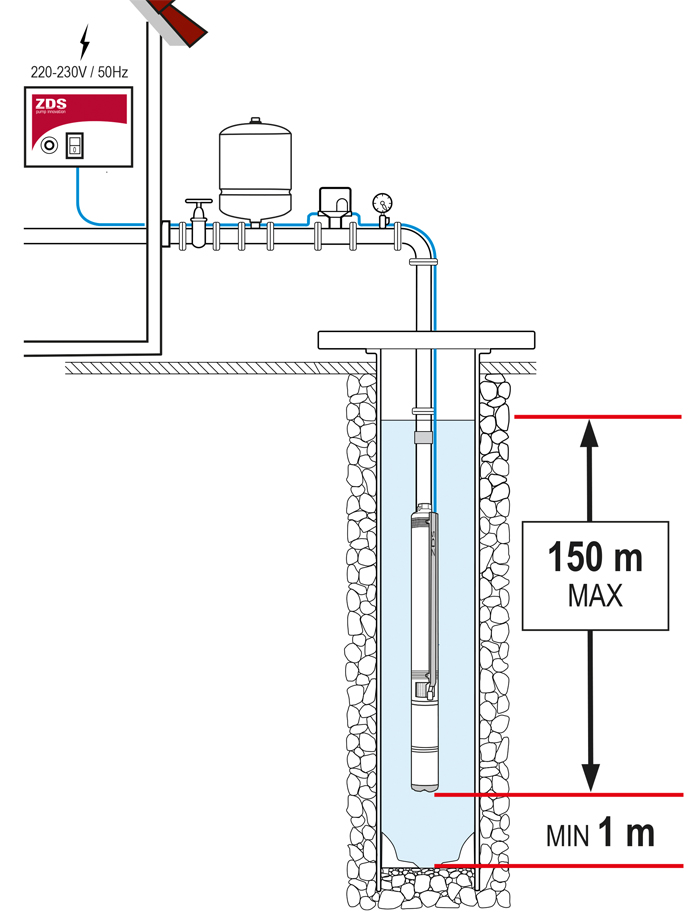

Information on a proper installation

  • If you are using a generator with an internal combustion engine, it is necessary that the generator’ s power measured in kW (in continuous delivery) is three times the rated power in kW of the submersible pump.
  • We recommend to install a proper cooling jacket in installations bigger than 10 cm, to guarantee the correct motor cooling flow.
  • In order to reset the overload protection sensor, it is necessary to press the appropriate button on the CBO.
