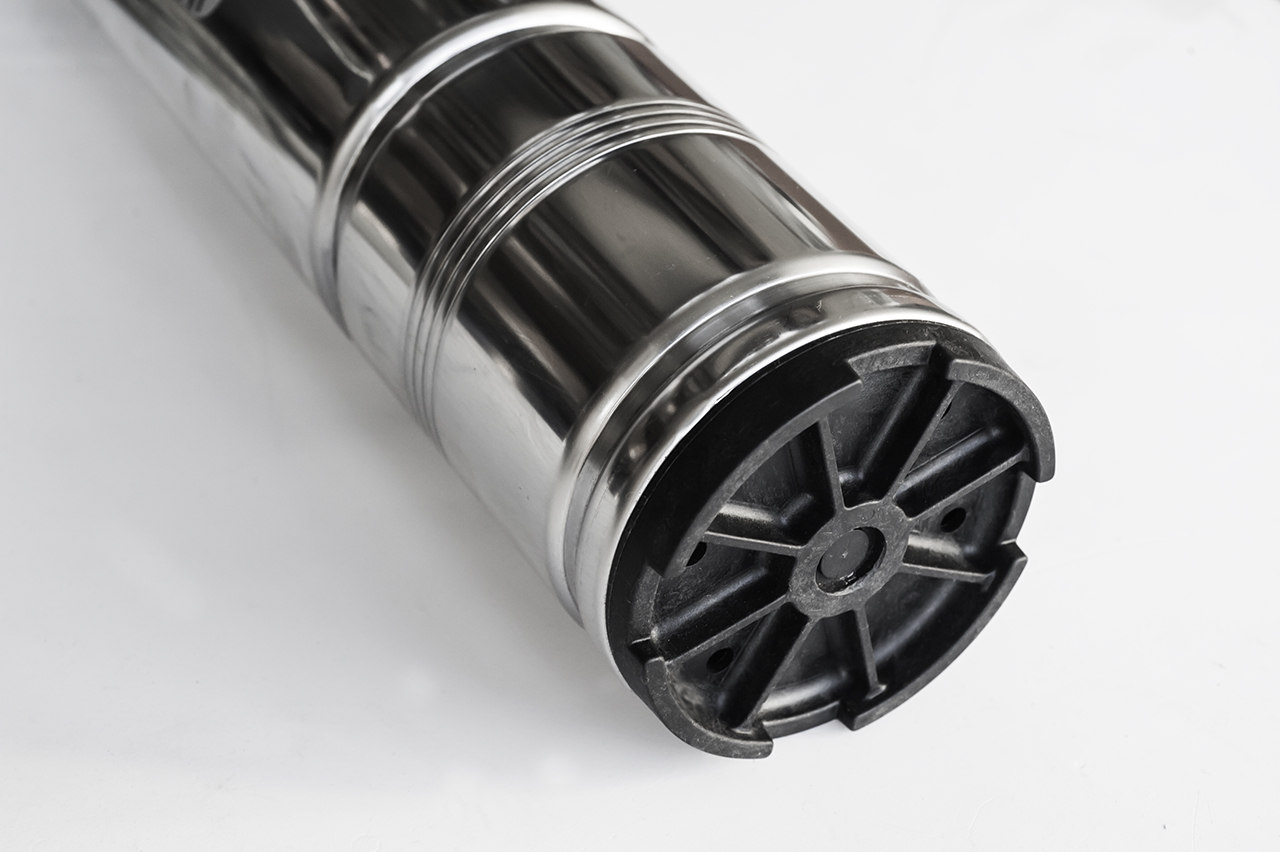

4" Three-phase oil-cooled OT.DRP Motor (380-415V / 50Hz)

Three-phase submersible OT.DRP motors are manufactured to ISO 9001 standards and are designed to operate coupled to hydraulic parts with the same coupling dimensions.  Parts in contact with water  are made of stainless steel; cooling and lubrication of ball bearings are guaranteed by a FDA approved dielectric fluid. Supply cable connector, removable for quick and easy maintenance is equipped with the DRP protection device. The DRP is an electronic device, integrated into the connection cable that guarantees optimal protection of the submersible pump against dry running and other possible installation faults or operation failures. In case of water shortage, the DRP stops the pump when the water is below its sensor. The DRP (observing a programmed time) restarts the motor when the water rises above its sensor.

APPLICATIONS
OT.DRP motors ensures optimal operation in 4” or in wells of larger diameter. The axial and radial oil-lubricated bearings allow for maintenance-free operation. The pressure compensation inside the motor is ensured by a special internal membrane. Compared with traditional solutions, no additional cables, sensors and control boxes are needed when using OT motors with DRP protection device.

CHARACTERISTICS OF CONSTRUCTION

  • The rewindable coated stator is inlaid into a 304L stainless steel casing, the design of 24 slots ensures more flexibility and smooth operation, it is varnished and  immersed in dielectric fluid to guarantee optimal cooling capacity of temperature during operation
  • The AISI 420B integral shaft ensures optimal performance thanks to the special surface hardening . The squirrel cage rotor is made of aluminium for all motor powers.
  • Oversized ball bearings are completely silent and of high axial load
  • Motors ready to use, prefilled with dielectric fluid
  • Sand protection and mechanical seal designed to guarantee optimal operation even with high quantity of sand in the pumped liquid
  • Safety motor bottom cover for extra protection
  • All motors are 100% tested
  • DRP protection device integrated into the connection cable available for all powers

Send us a request


  • kW: 0,37 - 4
  • Voltage range: 380-415V / 50Hz
  • Flange: 4" NEMA standard dimensions
  • Voltage tolerance 50Hz from nominal: +6% / -10% Un
  • Rotation: reversible
  • Degree of protection: IP 68
  • Insulation: F
  • Rated ambient temperature: max 40° C
  • Cooling flow: min 8 cm/sec
  • Maximum starts/h: 150, equally distributed
  • Mounting: vertical/horizontal, shaft upwards
  • Maximum immersion depth: 150 m
  • Allowed range of water pH: 6,4 - 8,0
  • Thrust: 1.500 N, 2.500 N, 4.500 N (according to ranges)
  • Protection requirements: For OT motors an overload protection and a control unit for motor start and run must be installed according to EN 60947-4-1 trip time < 10 sec. at 5xIn.

Automatic protections

Dry-running protection

Dry-running protection

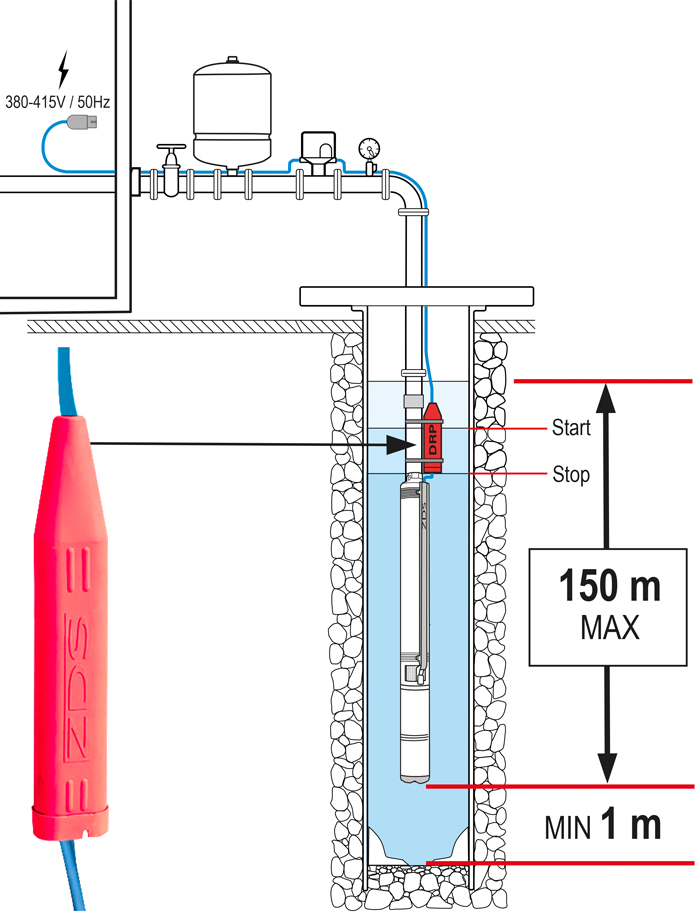

The DRP completely protects the OT.DRP motor against lack of water in the well, without the aid of other equipment (probes, cables, sensors, control panels etc.). In case of dry running, the DRP automatically stops the OT.DRP motor. When the water level is restored in the well, the DRP restarts it after a programmed cycle time.

Protection against too frequent start&stops

Protection against too frequent start&stops

The DRP will protect the pump against leaks in the piping system (also when the pressure tank is exhausted or its membrane is defective, or when there is a defective pressure switch) and too frequent starts and stops (for example if the tank is too small for the system). In such cases to avoid potential damages, the DRP, after some automatic re-start attempts, makes the OT.DRP motor enter the stand-by mode.

Overload protection

Overload protection

The OT.DRP motor is protected against overload. In case the pump is partially o totally blocked, the DRP, after some automatic re-start attempts, makes it enter the stand-by mode.

Low voltage protection

Low voltage protection

The DRP protects the OT.DRP motor against low voltage. Low voltage can occur, for example, if the section of the power cable is not adequate considering the motor power and the distance between the plug and the pump itself; or if a generator is faulty or undersized for the pump.

Voltage peaks protection

Voltage peaks protection

The DRP protects the OT.DRP motor against voltage peaks, which can be caused by electric abnormalities in the supply network or by other various electrical interferences. It reduces overvoltage, keeping the correct operating voltage range.

Phase-loss protection

Phase-loss protection

The DRP protects the pump against phas-loss (for example caused by a brake of a fuse). The DRP protects the motor against damaging.

Model performance

Download

Information on a proper installation

  • Before installation, it is necessary to verify technical requirements of the given hydraulic part (thrust, power) to select the correct motor.
  • During installation of a motor, it is necessary to verify if the power supply voltage is correct.
  • The correct motor operation is guaranteed when the power cable section is correctly selected, considering the motor power and the distance between the pump and the plug itself.
  • If you are using a generator with an internal combustion engine, it is necessary that the generator’s power measured in kW (in continuous delivery) is three times the rated power in kW of the submersible pump.
  • To guarantee automatic operation mode (the pump starts and stops when open and close the tap) it is necessary to connect a pressure switch and a pressure tank of the correct size, if the plant is not already provided with them.
  • We recommend to install a proper cooling jacket in installations bigger than 10 cm, to guarantee the correct motor cooling flow.
  • The maximum quantity of sand allowed in the pumped water is 120g/m³.
  • The DRP must NOT be used with a frequency inverter.
  • DRP doesn’t work with demineralized water (such as rain water).
  • DRP must not be used as a float.
  • The DRP must be immersed in the same water as the pump in order to ensure continuity between the DRP and the pump casing.
  • In order to reset the electronic protection, disconnect the pump power, wait 10 seconds, then plug it in again.
